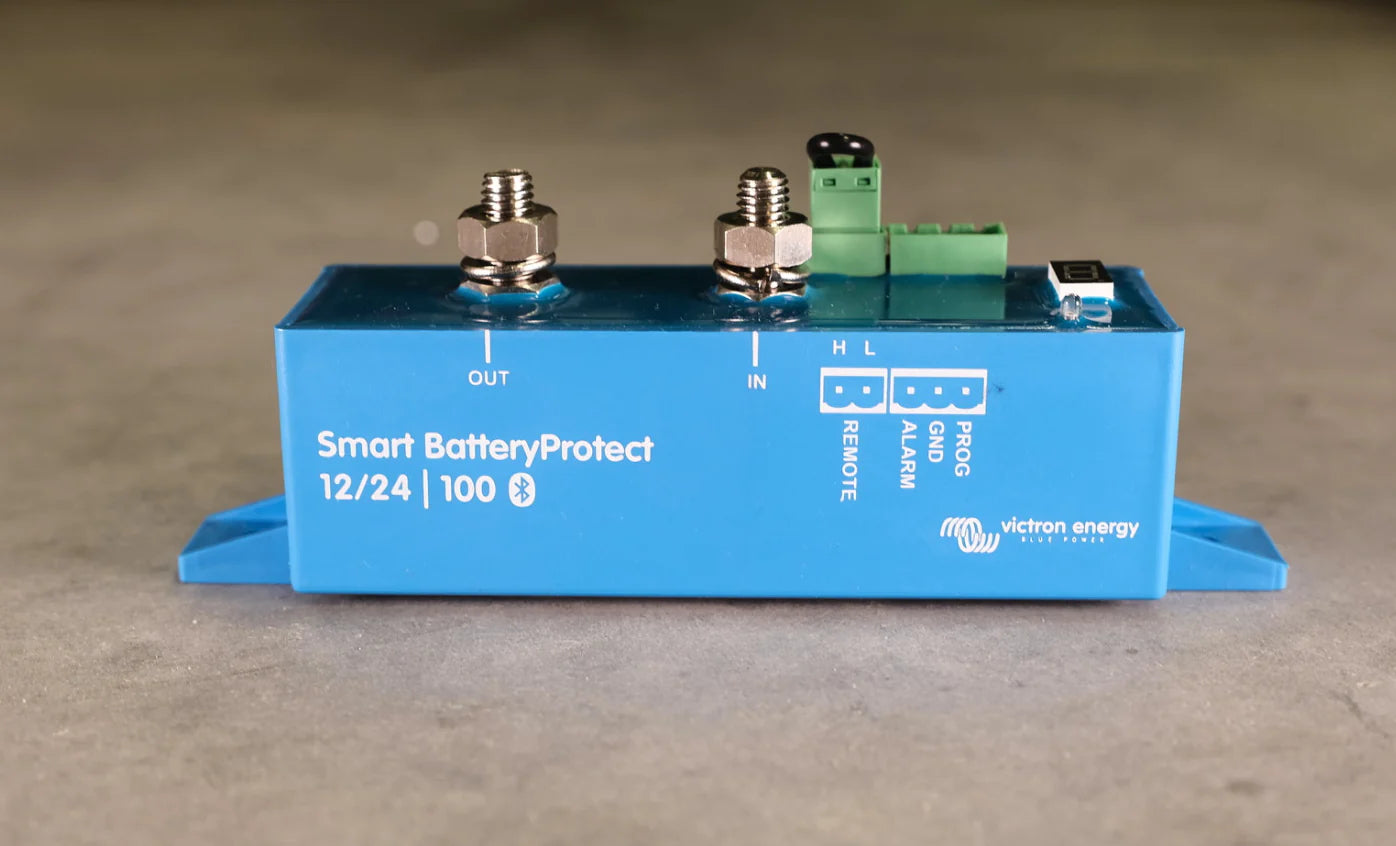

Victron Energy Smart BatteryProtect 12/24V 100A

Name: Victron Energy Smart BatteryProtect 12/24V 100A
Brand: alpenvans
Price: 78.2 USD
Availability: InStock

Victron Energy Smart BatteryProtect 12/24V 100A

$78.20 USD

Sale Sold out

Product variants

Quantity

The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.

The Battery Protect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the Battery terminal to the Load terminal. In case of use with a load, the battery connects to the Battery terminal, and in case of use with a charger, the charger connects to the Battery terminal.

Datasheet

Manual

PRODUCT FEATURES

Solid state relay for use with 12/24 Volts DC
Operating voltage range 6-35 Volts
Maximum continuous current 100 Amps
Maximum peak current 600 Amps (30 seconds)
Power consumption max 1.5 mA
Alarm output delay 12 seconds
Load disconnect delay when triggered by BMS is instanteneous
Load disconnect delay when triggered by low voltage of 10.5 or 21 Volts is 90 Seconds
Load reconnect delay 30 seconds when voltage gets to 12 or 24 Volts
Can be programmed to behave as a 12 or 24 volt solid state DC relay
Featuring Built-In Bluetooth
