Victron Energy Battery Monitor BMV-712

Name: Victron Energy Battery Monitor BMV-712
Brand: alpenvans
Price: 206.55 USD
Availability: InStock

Victron Energy Battery Monitor BMV-712

$206.55 USD

Sale Sold out

Product variants

Quantity

This is the latest version of the BMV Amp Hour Meter, now called the BMV712. It replaces the BMV702 that went before it by adding built in Bluetooth. It keeps track of current flowing in and out of a battery bank and uses a sophisticated algorithm to read out the state of charge of the battery in Percentage Remaining and Amp Hours Remaining. It also displays Volts and Amps, time to go, and Consumed Energy and keeps track of Historic Data including Battery Efficiency, Average Discharge, Deepest Discharge, Number of Cycles, Overvoltage, and Undervoltage Alarms.

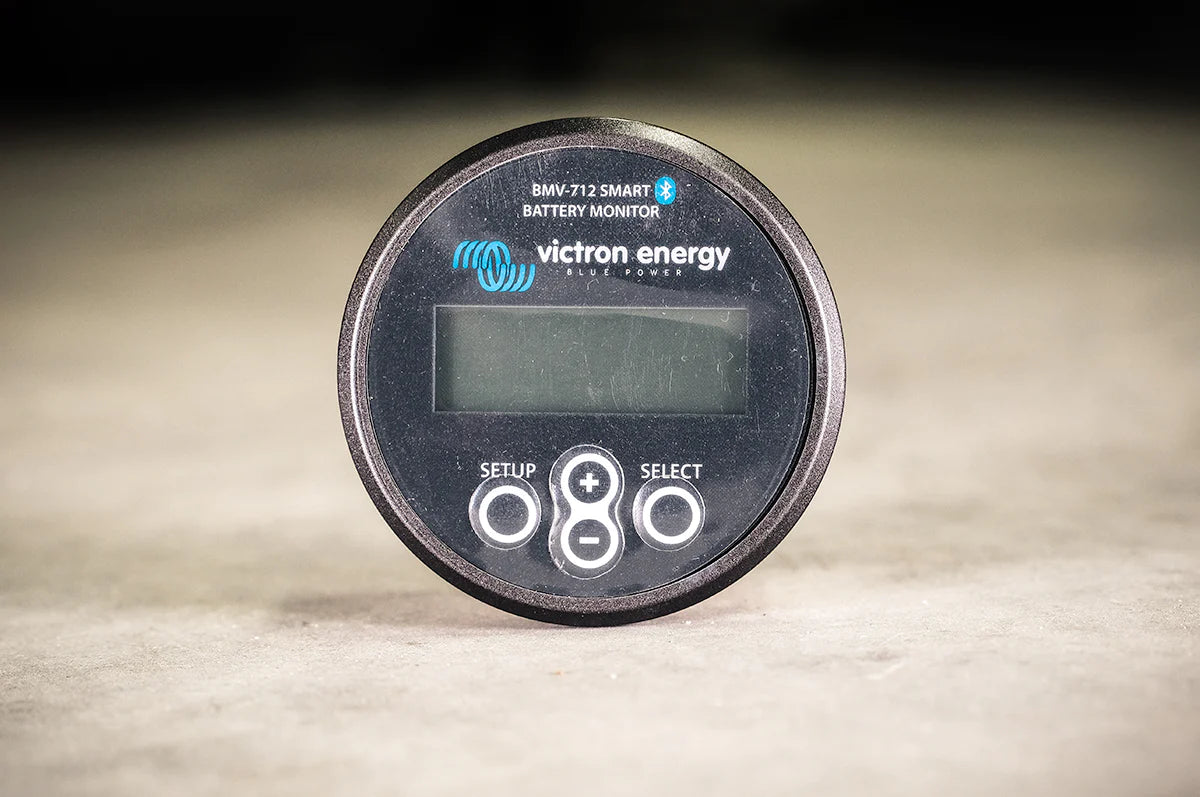

Victron Energy BMV 712 battery monitor

Monitors volts, amps, amp hours and time to go for a single battery bank.

Reads voltage (only) for a second bank, OR midpoint voltage

Can read temperature (with addition of optional temperature sensor)

Included shunt measures up to 500 Amps

For use with DC systems from 12 to 70 volts

Visual and audible alarms and programmable alarm

10 metre cable, connectors and fuse included.

We can special order shorter cables for a small charge but it will delay your order.

Special order cables come in 0.3m, 0.9m, 1.8m, 3m, and 5m

Removeable bezel allows round or square face for display

Read the blog post

More videos

The primary advantage of the BMV 712 over the BMV 702 and separate Bluetooth Dongle is that by building in the Bluetooth component into the meter the VE Direct port is available for other uses (eg connecting to the Color Control GX)

A note about the voltage limit of this unit: 70 Volts is the maximum allowed voltage and not 95 Volts as listed in their literature. Their literature will be corrected.

Victron Energy BMV 712 battery monitor
Monitors volts, amps, amp hours and time to go for a single battery bank.
Reads voltage (only) for a second bank, OR midpoint voltage
Can read temperature (with addition of optional temperature sensor)
Included shunt measures up to 500 Amps
For use with DC systems from 12 to 70 volts
Visual and audible alarms and programmable alarm
10 metre cable, connectors and fuse included.
We can special order shorter cables for a small charge but it will delay your order.
Special order cables come in 0.3m, 0.9m, 1.8m, 3m, and 5m
Removeable bezel allows round or square face for display
